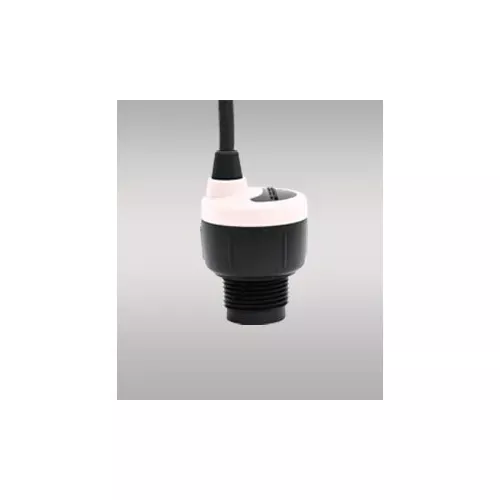

The general purpose ultrasonic level transmitter provides continuous level measurement up to 49.2″ (1.25m) with a 4-20 mA signal output, and is configured via WebCal software. Select this sensor for small tanks with non-foaming, non-condensing or highly vaporous media such as chemical, water, wastewater and oil. Typical applications include chemical feed, skid or machine, IBC or drum and small waste sumps.
Features:
- Continuous non-contact level measurement up to 49.2″ (1.25m)
- 4-20 mA output for longer signal distances up to 1000′ (300m)
- Configuration is fast and easy via WebCal software and USB adapter
- Narrow 2″ beam width and short 2″ dead band optimized for small tanks
- PVDF transducer and 6P polycarbonate enclosure for corrosive liquids
- Automatic temperature compensation for accurate measurement
