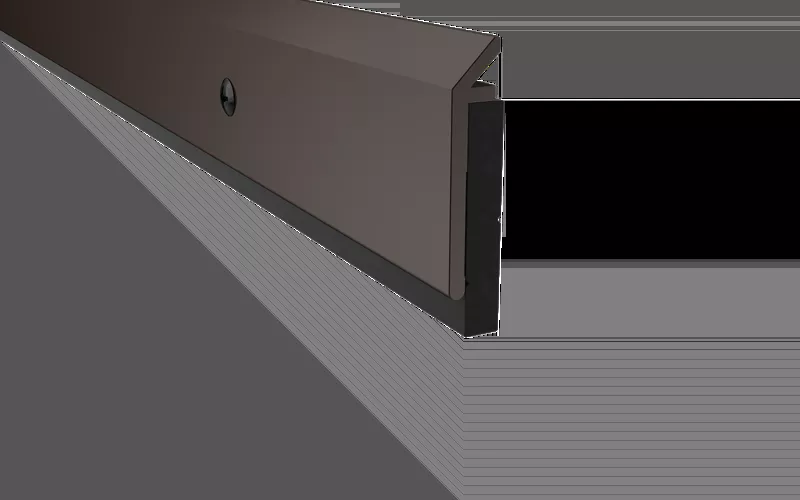

The 3151_R Standard Perimeter Gasket features a sponge neoprene insert and is available in a variety of finishes.
Features
- Certifications:- GREENGUARD Gold Certified, UL 1784 – Standard for Air Leakage Tests of Door Assemblies and Other Opening Protectives, UL 10C – Standard for Positive Pressure Fire Tests of Door Assemblies, ANSI/BHMA A156.22 Door Gasketing and Edge Seal Systems
Specifications
- Base Material
- Aluminum
- Fasteners
- PHSMS No.6 x 5/8″
- Gasketing Material
- Neoprene
- Height
- 1/4″
- Mounting Location
- Side of Frame
- Mounting Type
- Screw applied
Applications
- Public Buildings & Facilities
- Commercial & Industrial Buildings
- Government & Military Facilities
- Retail & Strip Malls
- Multifamily & Mixed-Use
Downloads
- Catalog
- Cut Sheet
- Installation Insttuctions
