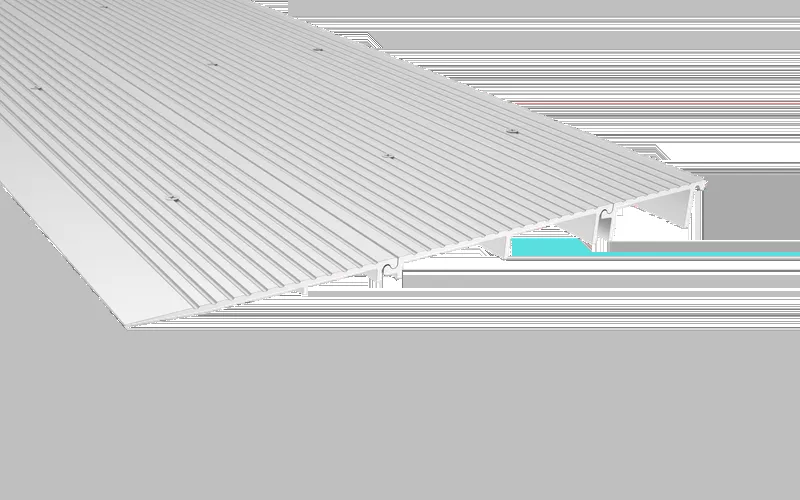

The R1.25F Flush Modular Ramp Assembly with 1-1/4″ high offset is 15-1/2″ wide and perfect for seamlessly transitioning between offset floor conditions. It provides a smooth and safe passage for individuals with limited mobility. PemKote non-slip coating application is highly recommended for added protection. Optional Miter Returns (not ADA compliant) are also available for added convenience.
Features
- Optional miter return
- PemKote is highly recommended, especially in exterior conditions where moisture may be present
- Supplied with No.10 stainless steel wood screws
- Assemblies are provided NET length
- Miter returns will add two pieces to total components; miter returns with extenders will add four pieces to total components
- Fire rated
- 1-1/4″ floor offset
- ADA-compliant (not when used with Mitre return)
- Provides seamless transition between offset floor conditions
- Certifications:- UL 10C – Standard for Positive Pressure Fire Tests of Door Assemblies, Americans with Disabilities Act (ADA) Compliant, ANSI/BHMA A117.1
Specifications
- Base Material
- Aluminum alloy
- Fasteners
- No.10 Stainless Steel Wood Screw
- Overall Height
- 1 1/4″
- Width
- 15 1/2″
Applications
- Public Buildings & Facilities
- Commercial & Industrial Buildings
- Government & Military Facilities
- Retail & Strip Malls
- Multifamily & Mixed-Use
Downloads
- Catalog
- Pemko R1.25F Aluminum Flush Modular Ramp Cut Sheet
- Pemko R1.25FMR Aluminum Flush Modular Ramp Cut Sheet
- Installation Instructions
