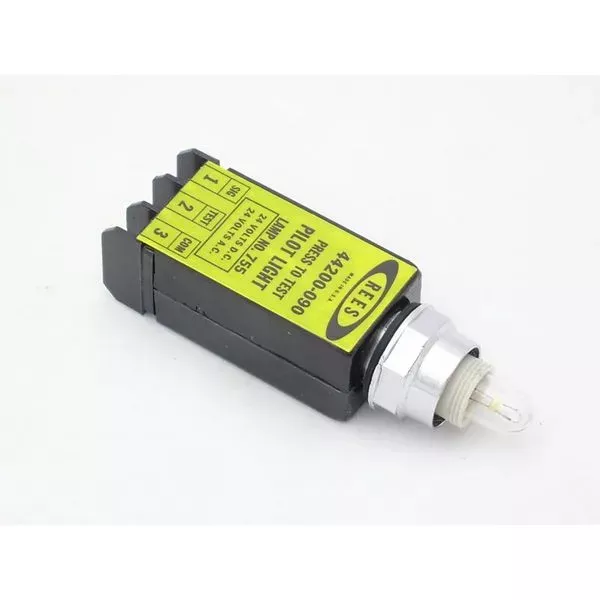

The pilot light body is made from polycarbonate and is sonically welded together. The zinc die cast housing will mount in a 0.69 in. dia. hole. Each captive terminal on the terminal block will accept 14 AWG stranded wires. These lights are generally found on machine control panels as circuit/function indicators. Replacement lamps and lenses can be found in the accessories section for 30.5mm devices.
Electrical Ratings
- HEAVY DUTY – A600 / N300
- Listed under UL 508 – File E 58589
- Certified under CSA C22.2 – File LR 3648
Environmental Temperature Range
- Operating: +32oF to +131oF (0oC to +55oC)
- Storage: -40oF to +185oF (-40oC to +85oC)
